Check valve series

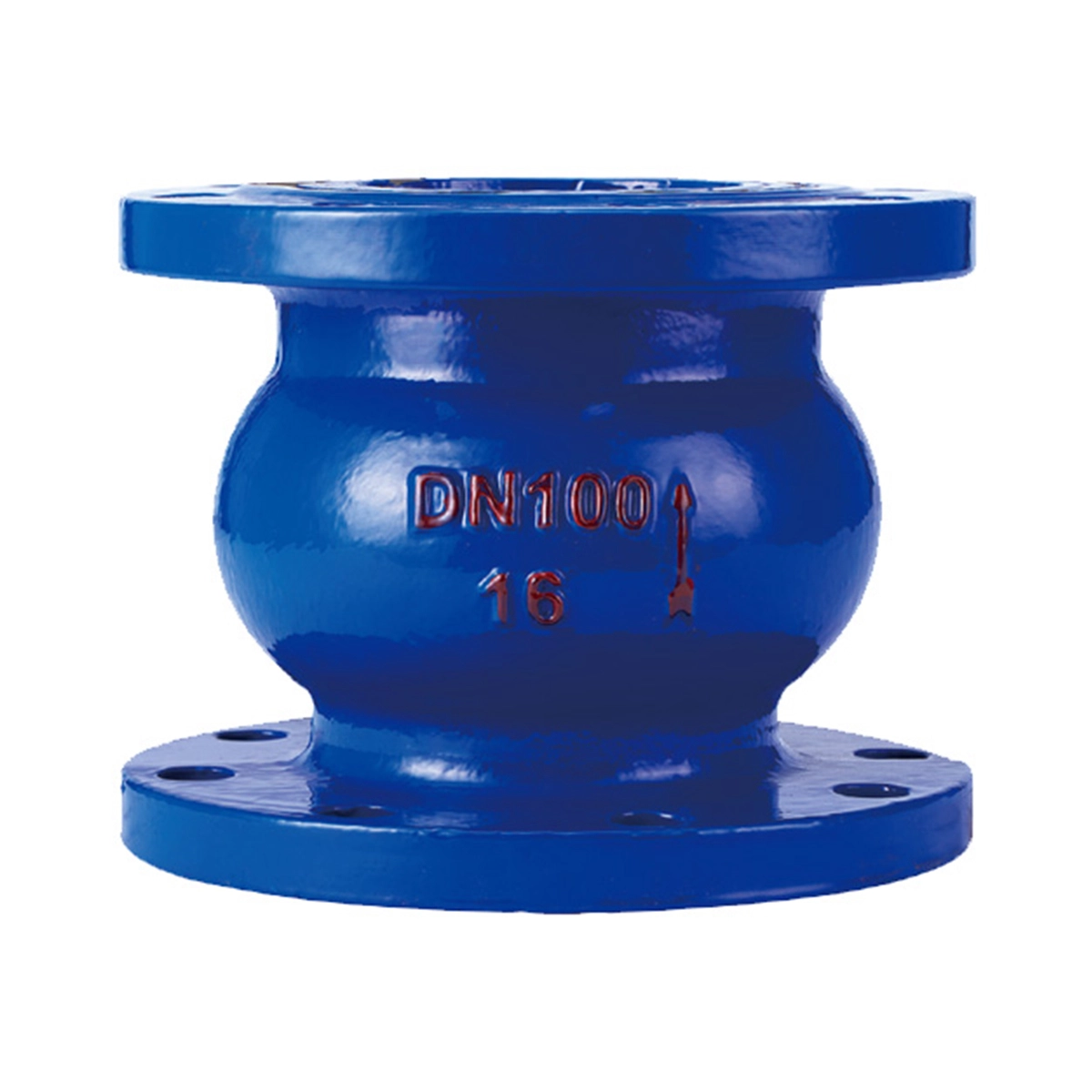

H41X energy-saving silencing check valve
The silent check valve is suitable for water supply and drainage pipelines. The valve disc uses a central shaft guide at both inlet and outlet ends, making it flexible to open and close, and can be installed horizontally or vertically. The valve disc is spring-loaded, and its quick closing effectively eliminates water hammer, with good sealing performance and silent closing. It features small size, light weight, low fluid resistance, fatigue resistance, and long service life.
A silent check valve mainly consists of a valve body, valve seat, guide body, valve disc, bearings, and spring. The internal flow path uses a streamlined design, resulting in minimal pressure loss. The valve disc opening and closing stroke is very short, and it can be quickly closed when the pump stops, preventing loud water hammer noise, and features silent closing.
HO44X wear-free ball check valve
Slide ball check valve, using rubber-coated ball as valve disc, under the action of the medium, can roll up and down on the integral slide in the valve body, thus opening or closing the valve, good sealing performance, silent closing, no water hammer. The valve body adopts a full water flow channel, large flow, small resistance, and the head loss is 50% less than that of the swing check valve. It can be installed horizontally or vertically, and can be used in cold water, hot water, industrial and domestic sewage pipelines, and is more suitable for submersible sewage pumps. The medium temperature is 0~80℃
Slide ball check valve, using rubber-coated ball as valve disc, under the action of the medium, can roll up and down on the integral slide in the valve body, thus opening or closing the valve, good sealing performance, silent closing, no water hammer. The valve body adopts a full water flow channel, large flow, small resistance, and the head loss is 50% less than that of the swing check valve. It can be installed horizontally or vertically, and can be used in cold water, hot water, industrial and domestic sewage pipelines, and is more suitable for submersible sewage pumps. The medium temperature is 0~80℃

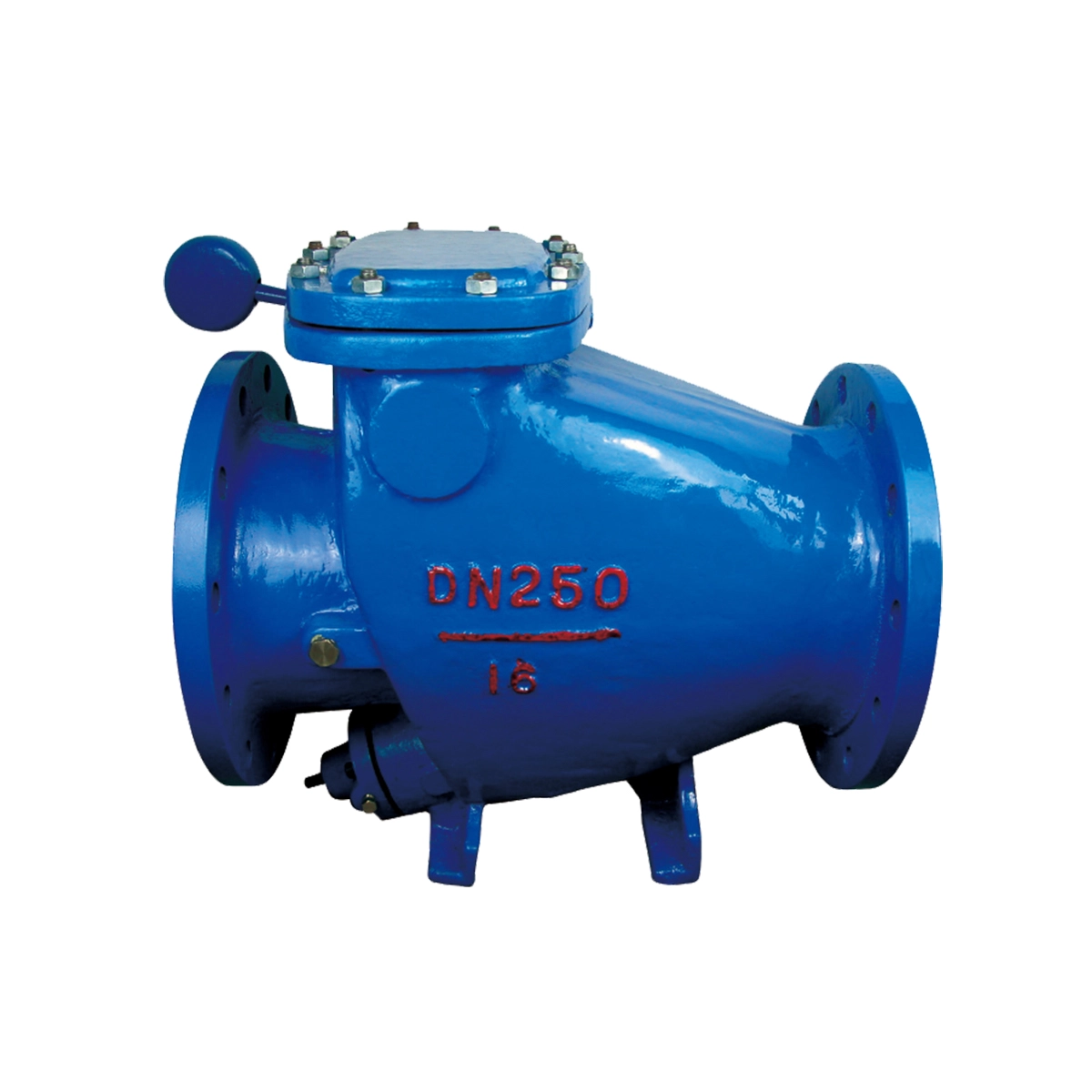

Low-resistance slow-closing check valve
Low-resistance, slow-closing check valves are used in water supply and drainage pipelines. They are installed at the outlet of the water pump to prevent backflow and eliminate destructive water hammer, effectively reducing the valve closure water hammer pressure and ensuring the safe operation of the pipe network. They feature a light valve disc, large opening, significant energy-saving effect, low fluid resistance, novel water hammer elimination mechanism design, stable and reliable sealing performance, wear resistance, long service life, stable operation, no vibration, and no noise.
Low-resistance, slow-closing butterfly check valve
Our factory produces HH46X, HH48X, and HH49 series silencers and check valves that can be used in drainage pipes with clear water, sewage, and seawater media. They prevent backflow of media and effectively limit destructive water hammer, ensuring the safe use of pipelines. They feature a novel structure, small size, light weight, low fluid resistance, reliable sealing, smooth opening and closing, wear resistance, long service life, and oil pressure and slow closing are not affected by the medium, resulting in good energy-saving effects.
Trench type rubber flap check valve H84X
Trench (clamp) connection valves are a series of new connection valves designed and manufactured by introducing advanced products of the same type from the United States and Germany. The sealing ring of this product adopts an inclined design, which shortens the closing time and reduces the water hammer pressure. The valve disc is made of oil-resistant rubber and steel plate by high-temperature pressing, which is resistant to scouring and has good sealing performance.
The HC44X rubber flap check valve is a one-way valve with a full-flow design, widely used in water supply, drainage, HVAC, and industrial piping systems. The main features of this valve are the use of a rubber flap as the closing element, automatic opening and closing via fluid pressure, effectively preventing backflow, and simultaneously reducing water hammer impact to ensure stable system operation.
Flange rubber flap check valve HC44X
The HC44X flange rubber flap check valve uses a flange connection and rubber flap sealing structure, conforming to national standards such as GB/T 12238.
The rubber flap design achieves zero-leakage sealing, and the self-closing design reduces water hammer impact. The streamlined flow path reduces energy consumption; the ductile iron valve body + stainless steel components are corrosion-resistant and impact-resistant, suitable for PN1.0~1.6MPa, 0~80℃ operating conditions.
It is widely used in water supply and drainage, sewage treatment, and other fields, providing reliable unidirectional flow protection for pipeline systems, and features energy saving and quiet operation.
