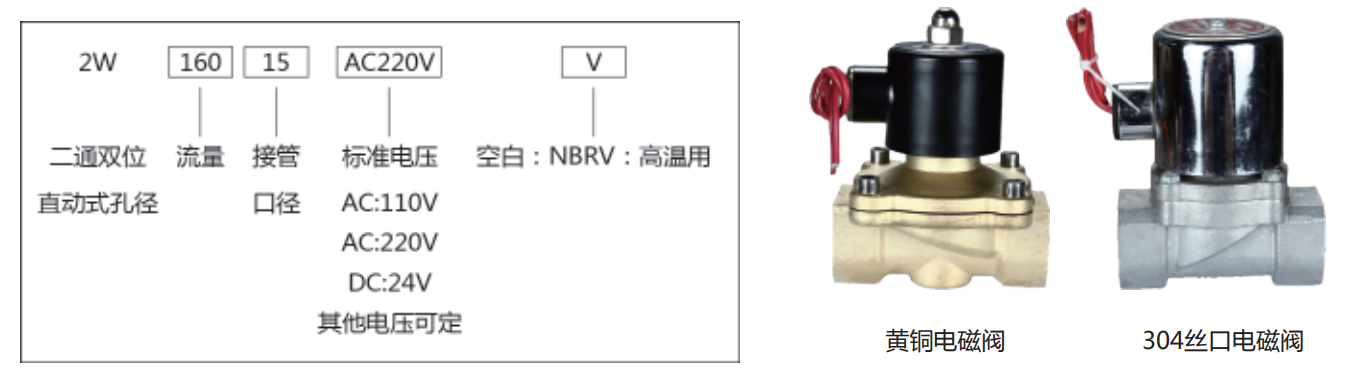

I. Core Structural Features
- Connection Type : Uses threaded connection ，The thread conforms to GB/T 7307 "55° non-sealed pipe thread" standard, is compatible with conventional pipe threaded installation, and the sealing reliability meets the sealing design requirements of GB/T 12241 "Safety Valve General Requirements".
- Valve Body Material : The main body is 304 stainless steel (06Cr19Ni10), conforming to GB/T 20878 "Stainless steel and heat-resistant steel grades and chemical composition", with excellent corrosion resistance.
- Control Unit : An electromagnetic coil is integrated at the top (protection level IP54, conforming to GB/T 4208 "Degree of protection provided by enclosures"), driving the valve core switch through electromagnetic force, with a rapid response.
- Sealing Structure : Uses nitrile rubber (NBR) seals (conforming to GB/T 5574 "Industrial rubber sheets"), with a soft seal to ensure zero leakage (conforming to GB/T 13927 Class IV leakage requirements).
II. Technical Parameters
| Model | A | B | C | D | K |
| 2W160-10 | 101.5 | 57 | 117 | 69 | PT3∕8" |
| 2W160-15 | 101.5 | 57 | 117 | 69 | PT1/2" |
| 2W200-20 | 107 | 57 | 123.5 | 73 | PT3/4" |
| 2W250-25 | 111.5 | 73.5 | 134.5 | 99 | PT1" |
| 2W350-32 | 142 | 95 | 172 | 123 | PT1/4" |
| 2W400-40 | 142 | 95 | 172 | 123 | PT1∕2" |
| 2W500-50 | 172 | 123 | 209 | 168 | PT2" |
III. Structural Specifications
| Model | 2W025-06 2WQ25-08 2W040-10 2WL60-10 2W160-L5 2W200-20 2W250-25 2W350-32 2W400-40 2W500-50 | |||||||||
| Symbol | ||||||||||
| Working Fluid | Air, water, oil, gas | |||||||||
| Action Type | Direct acting | |||||||||
| Type | Normally closed, normally open | |||||||||
| Flow Aperture (mm) | 2.5 | 4 | 16 | 20 | 25 | 35 | 40 | 50 | ||
| Cv Value | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 46 | ||
| Pipe Connection Size | 1/8" | 1/4" | 3/8" | 3∕8" | 1/2" | 3/4" | 1" | 11∕4" | 11∕2" | 2" |
| Working Fluid Viscosity | Below 20 CST | |||||||||
| Working Pressure (kgf/cm²) | Water: 0~10 Air: 0~10 Oil: 0~5 | |||||||||
| Operating Temperature | -5℃ ~ 80℃ | |||||||||
| Operating Voltage Range | ±10% | |||||||||
| Body Material | Brass | |||||||||
| Seal Material | NBR or VITON | |||||||||
Keyword
304 stainless steel threaded electromagnetic valve
The 304 threaded port solenoid valve uses a 304 stainless steel valve body (compliant with GB/T 20878), with threaded connections matching the GB/T 7307 pipe thread standard, and nitrile rubber seals (GB/T 5574) ensuring zero leakage.
It integrates an electromagnetic control unit with a response time ≤0.15s, suitable for water, oil, weak acids, weak alkalis, and other media, covering -5~120℃ and ≤1.6MPa operating conditions.
Widely used in food, pharmaceutical, chemical, and water supply industries, it offers convenient installation, a lifespan ≥100,000 cycles, and meets national standards such as GB/T 12235, providing a highly efficient and corrosion-resistant automated switching solution for piping systems.
