I. Product Overview
This product is installed at the bottom of various sedimentation tanks to remove sludge and sediment from the bottom of the tank through the control of a reversing valve.
II. Technical Parameters
| Nominal Pressure | 1.0MPa |
| Opening and Closing Pressure | 0.15~0.6MPa |
| Diaphragm Drive Medium | Clean water, Air |
| Applicable Medium | Raw water, Clean water, Wastewater |
| Operating Temperature | 0~80℃ |

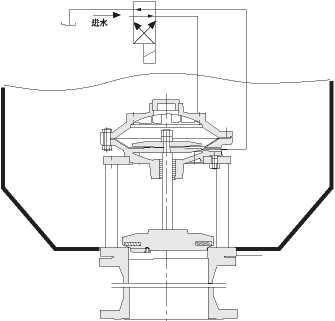

III. Typical Installation Diagram

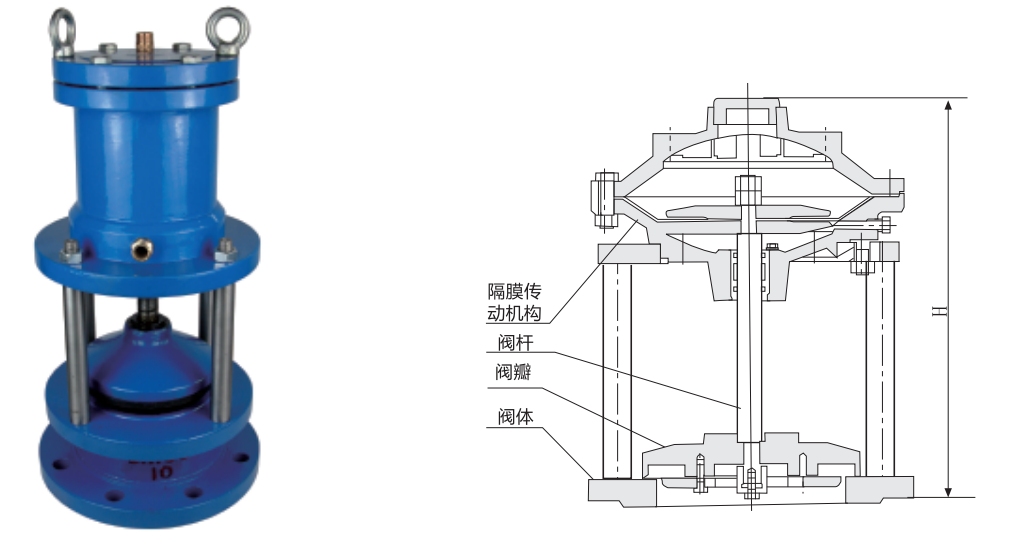

Main Parts Material |
Part Name | Valve body, Valve cover | Diaphragm pressure plate, Valve disc | Valve stem | Diaphragm |
| Material | Cast iron, Ductile iron, Valve steel | Ductile iron, Bronze | Stainless steel | Nylon reinforced rubber |
Unit: mm
Main Connection Overall Dimensions |
DN | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| H | 260 | 375 | 250 | 525 | 585 | 600 | 680 |
(Flange connection dimensions according to JB679-94)
Keyword
JM742X diaphragm type bottom sludge valve
