Copper valve series

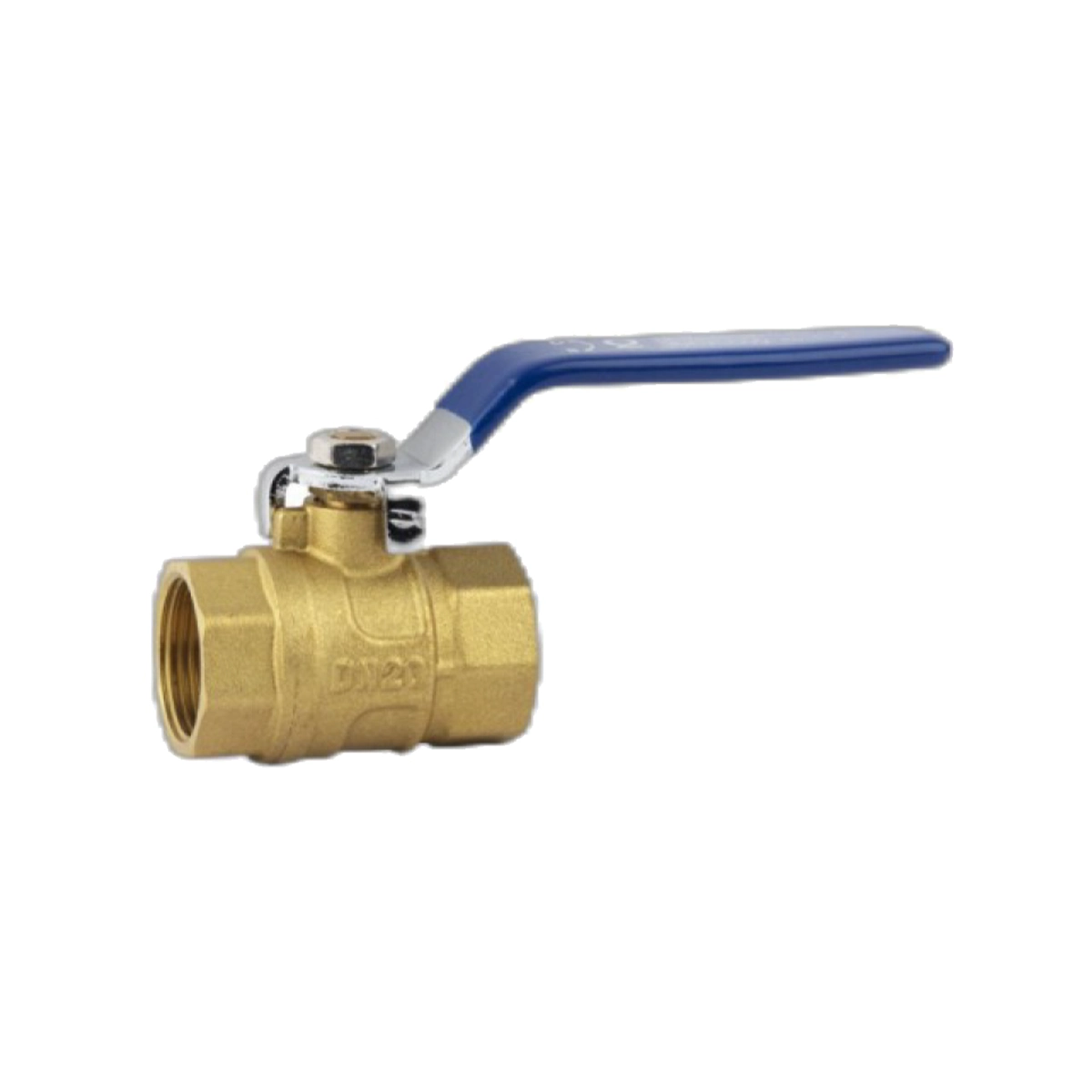

CN1151 ball valve uses a forged brass valve body with a double internal thread connection, configured with a blue long handle and a soft seal structure. Nominal pressure PN16, applicable to -20~120℃ medium, sealing performance conforms to GB/T 13927. Suitable for water supply and drainage, heating, industrial auxiliary pipelines and other medium and low pressure fluid systems, easy installation, flexible operation, reliable sealing, providing stable guarantee for efficient operation of pipe network.

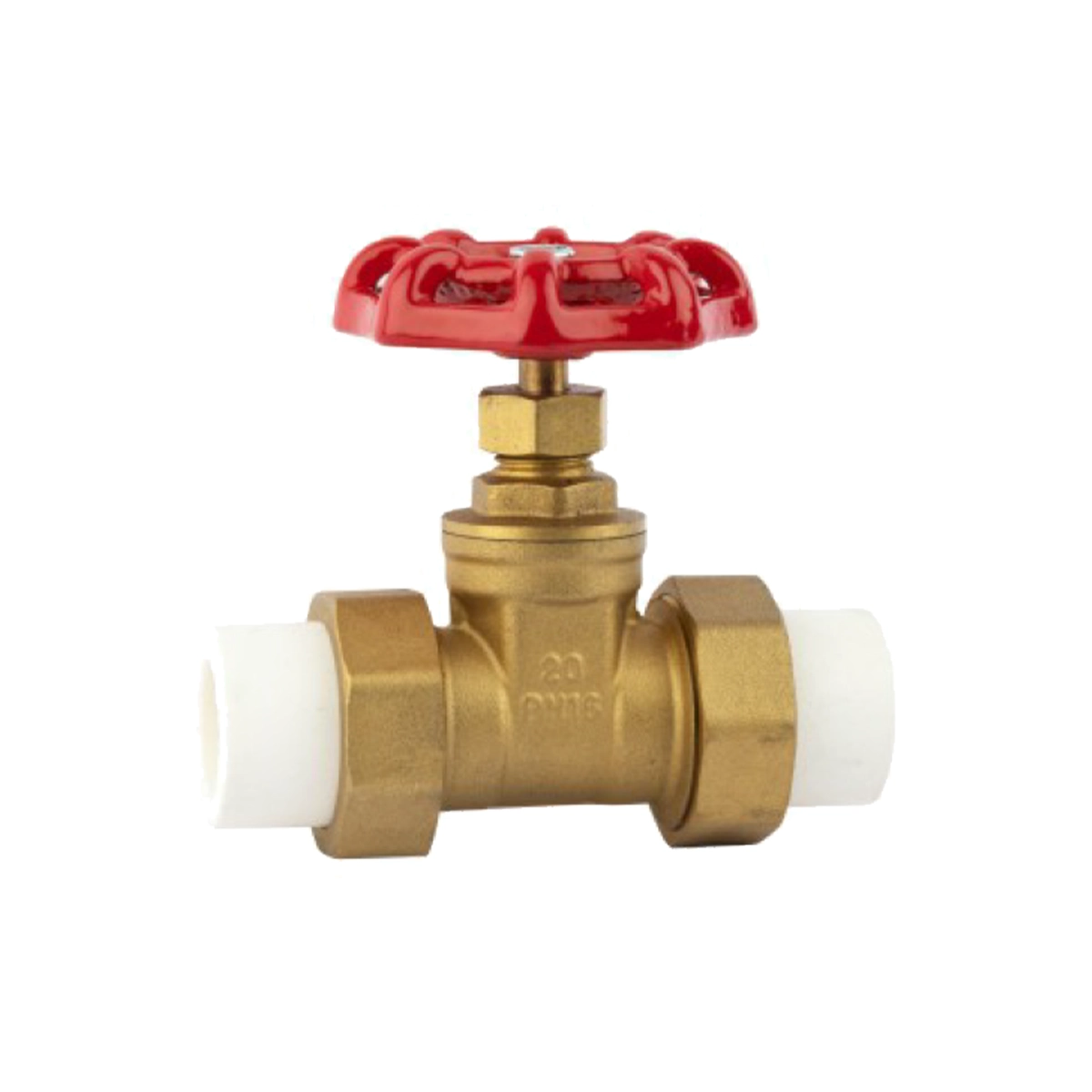

The CN5285PPR gate valve uses a brass valve body with a PPR hot melt connection, integrating a concealed stem gate plate seal and a multi-spoke handwheel operation. Nominal pressure PN1.6MPa, applicable for -10~95℃ media, conforms to GB/T 12232, GB/T 18742.2 and other national standards. Suitable for building water supply and drainage, floor heating, domestic water and other PPR piping systems, with reliable connection and excellent sealing, providing a safe and stable control solution for fluid shut-off.
Brass flange gate valve uses H59 brass valve body with PN16 flange connection, integrating gate hard seal and multi-spoke handwheel operation. Nominal pressure PN16, applicable to -20~120℃ medium, conforms to GB/T 12232, GB/T 9113.1 and other national standards. Suitable for municipal water supply and drainage, heating, fire protection, industrial circulating water and other large-diameter pipeline systems, with reliable connection, excellent sealing, and corrosion resistance, providing a safe and stable control solution for fluid shut-off.

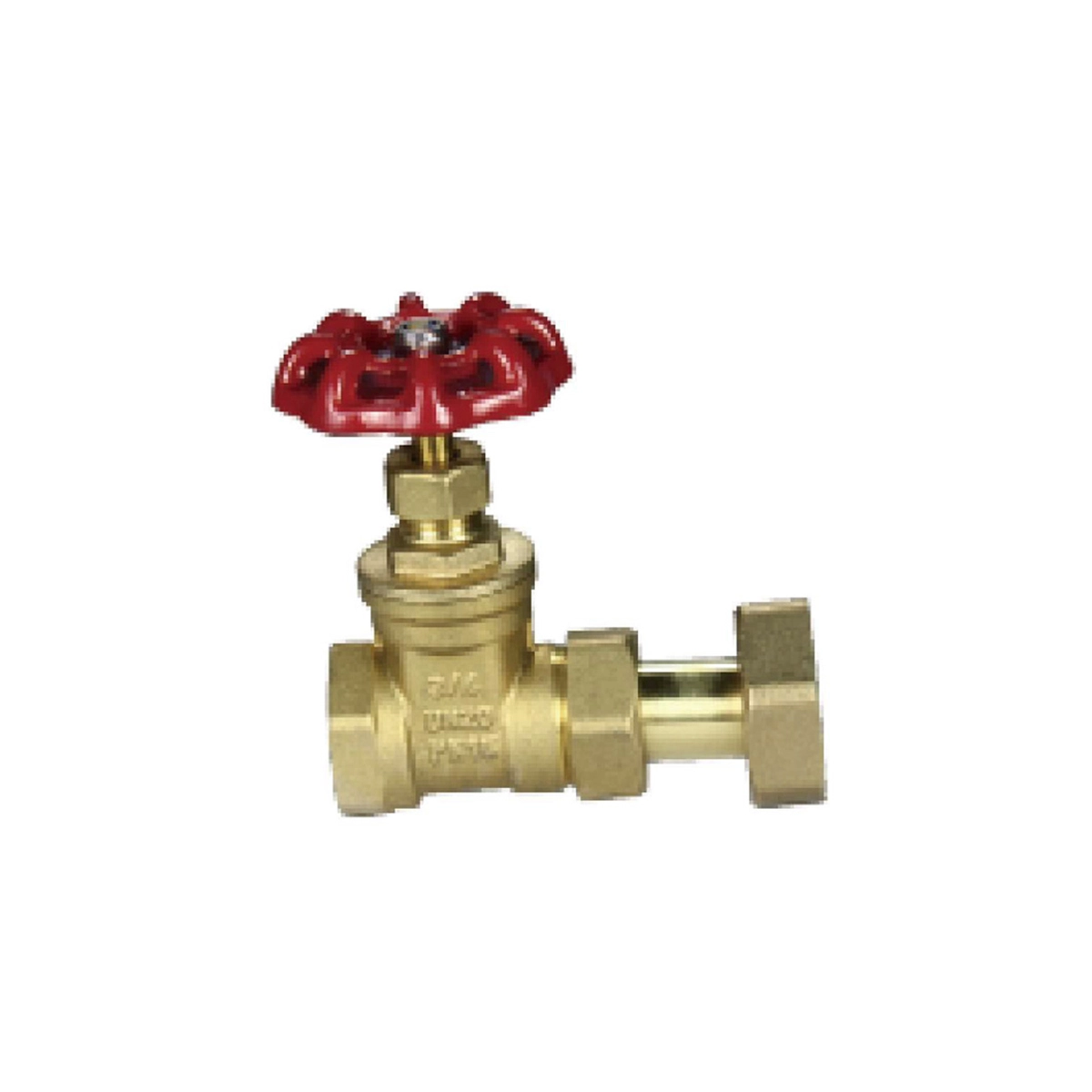

The brass water meter gate valve uses an H59 brass valve body, integrating an inner thread + live connection with a gate plate hard seal structure. Nominal pressure PN16, applicable to -20~120℃ water medium, conforms to GB/T 12232, GB/T 7306.1 and other national standards. Specifically designed for the front end of water meters, it is easy to install, reliably sealed, and corrosion-resistant, suitable for residential and commercial building water supply and drainage metering systems, ensuring safe and efficient operation of the pipe network.
Z15W-16T copper lock gate valve

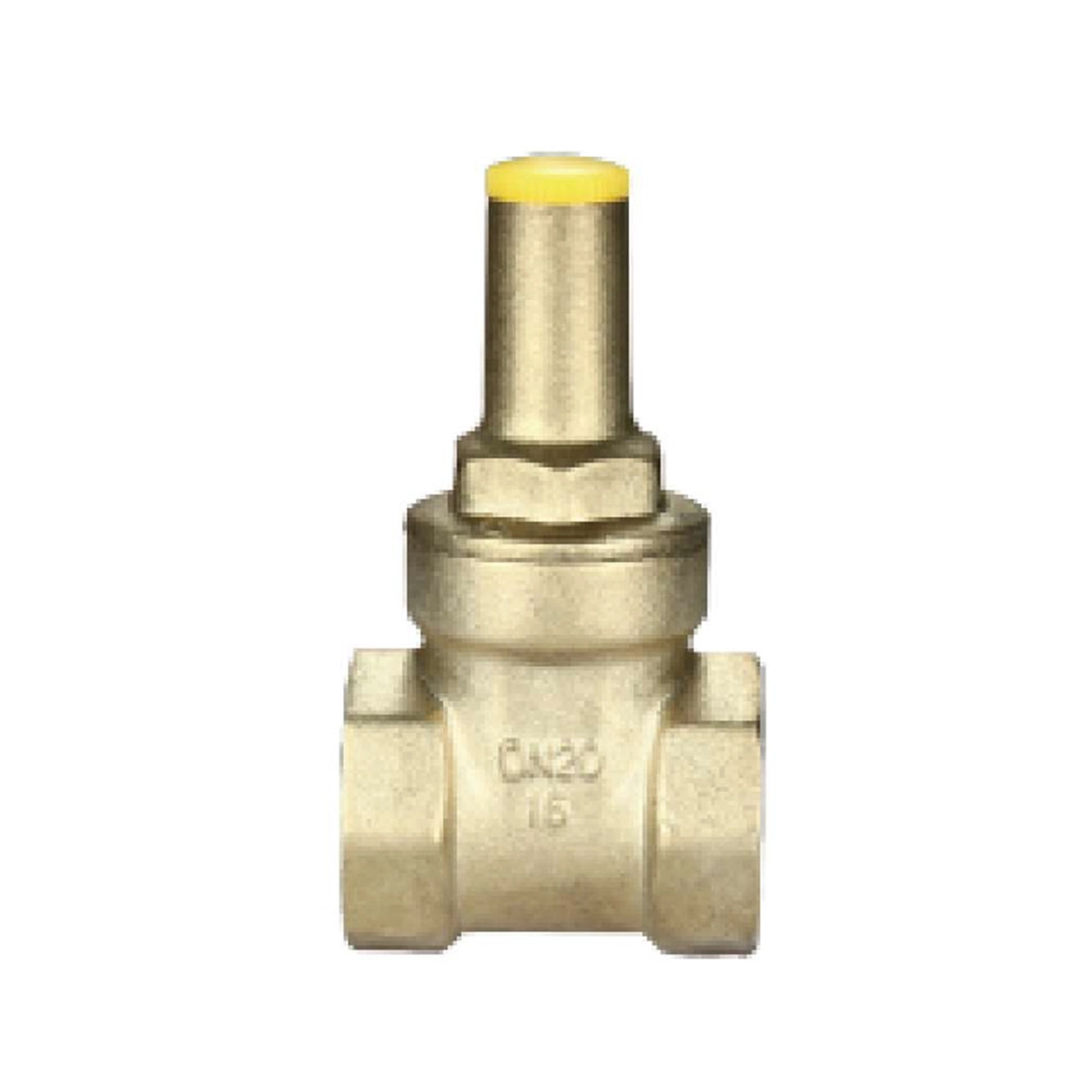

The Z15W-16T brass lockable gate valve uses a H59 brass valve body, with a double internal thread connection, integrating a gate plate hard seal and a dedicated locking mechanism (requires a triangular key). Nominal pressure PN16, suitable for -20~120℃ water medium, conforms to national standards such as GB/T 12232 and GB/T 7306.1. Specifically designed for the front end of water meters, it is easy to install, reliable sealing, and theft-proof, suitable for residential and commercial building water supply and drainage metering systems, ensuring safe and efficient management of the pipe network.

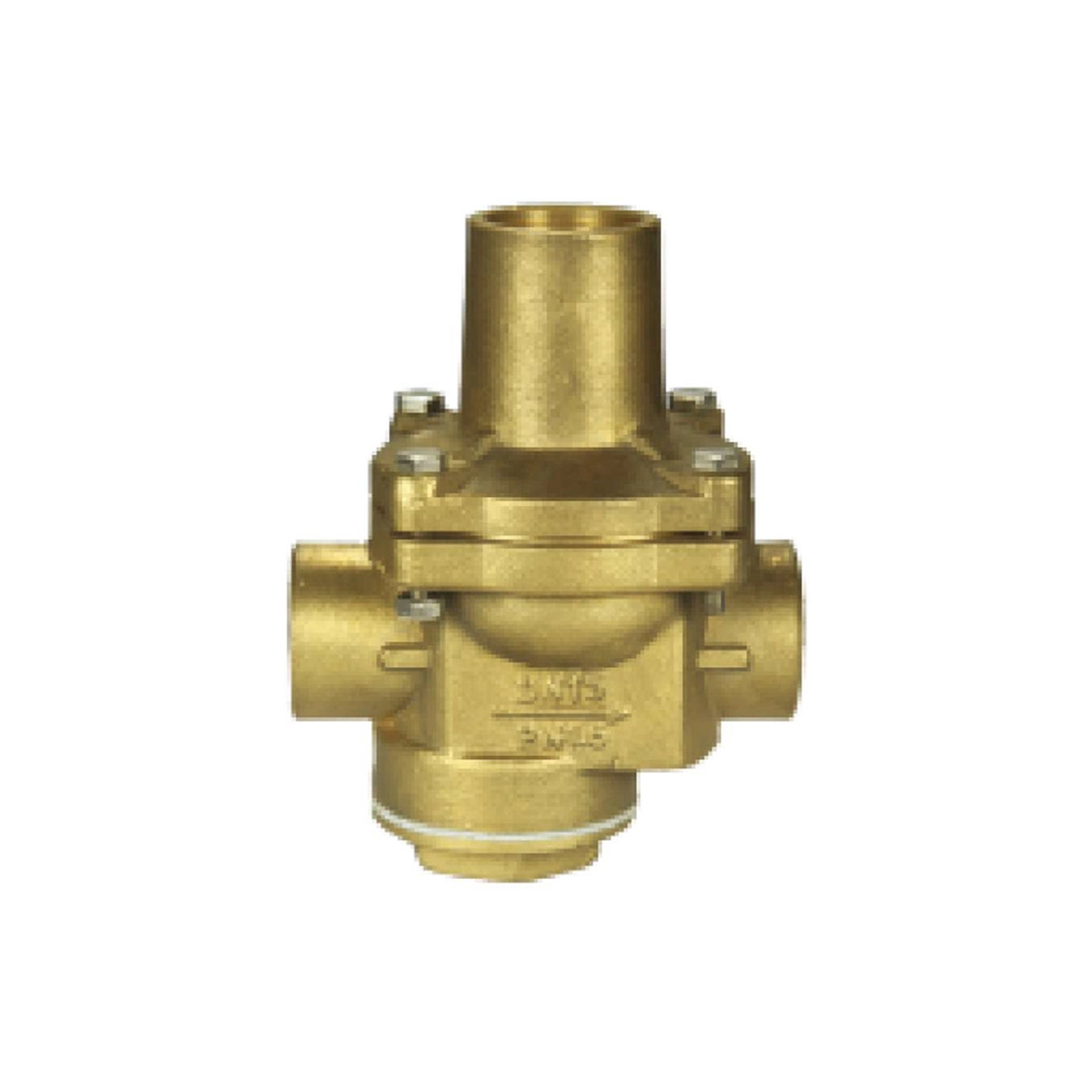

Y12X-16T brass pressure reducing valve
The Y12X-16T brass pressure reducing valve uses an H59 brass valve body with internal thread connection, integrating a direct-acting pressure reducing structure and a soft sealing component. Nominal pressure PN16, pressure regulating range 0.1~1.0MPa, applicable to water media of 10~120℃, conforming to national standards such as GB/T 12244 and GB/T 13927. Specifically designed for building water supply, municipal pipelines, and industrial auxiliary pipelines, it offers precise pressure regulation, reliable sealing, and convenient installation, providing a safe and stable pressure control solution for fluid systems.

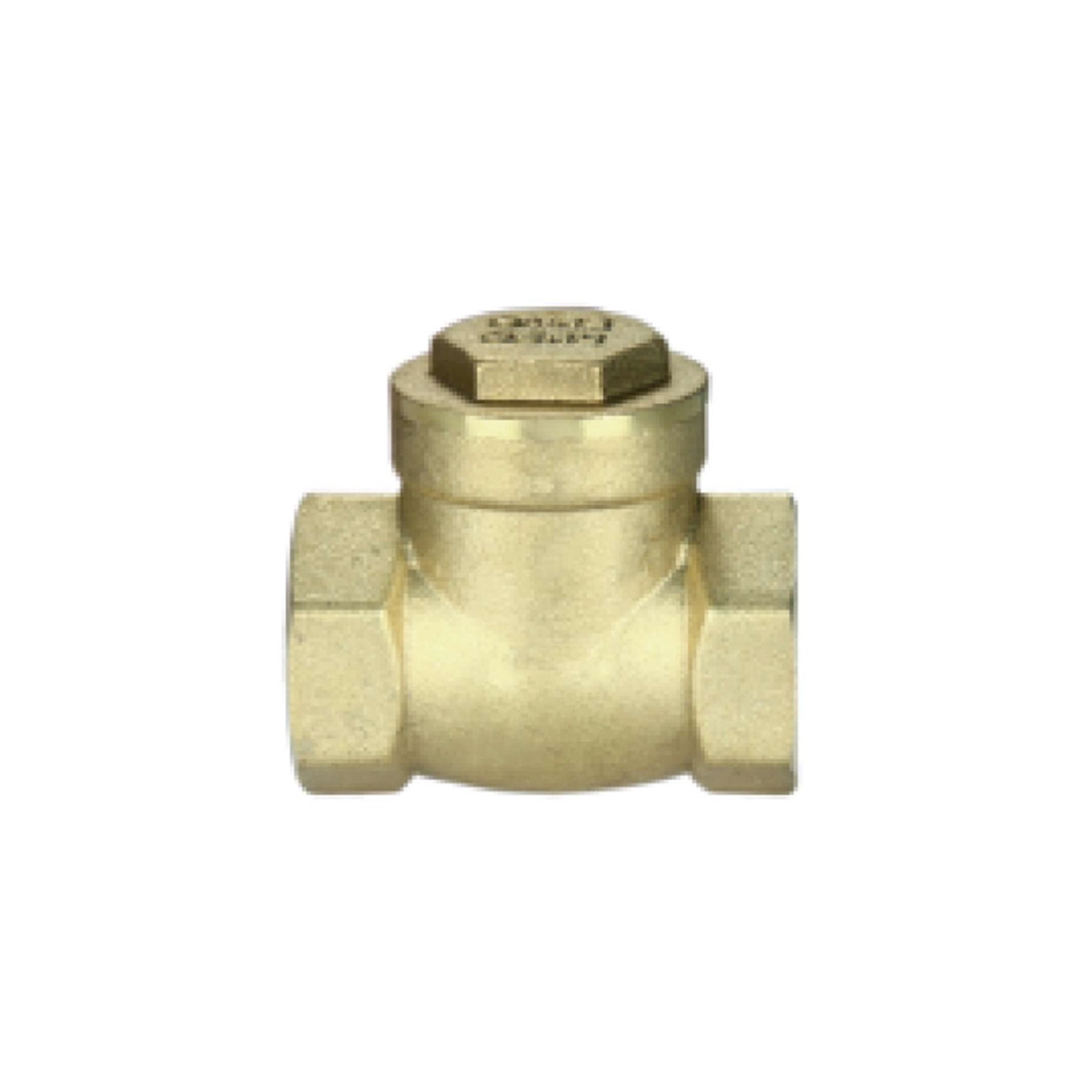

The H14W-16T brass check valve uses a H59 brass valve body with a double internal thread connection. It features an integrated swing check valve structure that automatically opens and closes based on media pressure difference and its own weight, preventing backflow. With a nominal pressure of PN16, it is suitable for water, oil, and other media at 20~150℃, conforming to national standards such as GB/T 12235 and GB/T 13927. Suitable for building water supply, heating, and industrial auxiliary pipelines, it offers convenient installation, reliable sealing, and corrosion resistance, providing safe and stable unidirectional flow for fluid systems. Brass check valves are generally suitable for clean media and are not suitable for media containing solid particles or those with high viscosity.
The G211H-16Y brass filter uses an H59 brass valve body with a double internal thread connection, integrating a Y-shaped flow path and a stainless steel filter mesh. It has a nominal pressure of PN16 and is suitable for water, oil, and other media at -20~120℃. It conforms to national standards GB/T 8464 and GB/T 13927. Specifically designed for filtering impurities in piping systems, it is easy to install and clean, effectively protecting downstream valves and equipment. It is widely applicable in building water supply, heating, and industrial auxiliary pipelines, providing reliable protection for the stable operation of fluid systems.

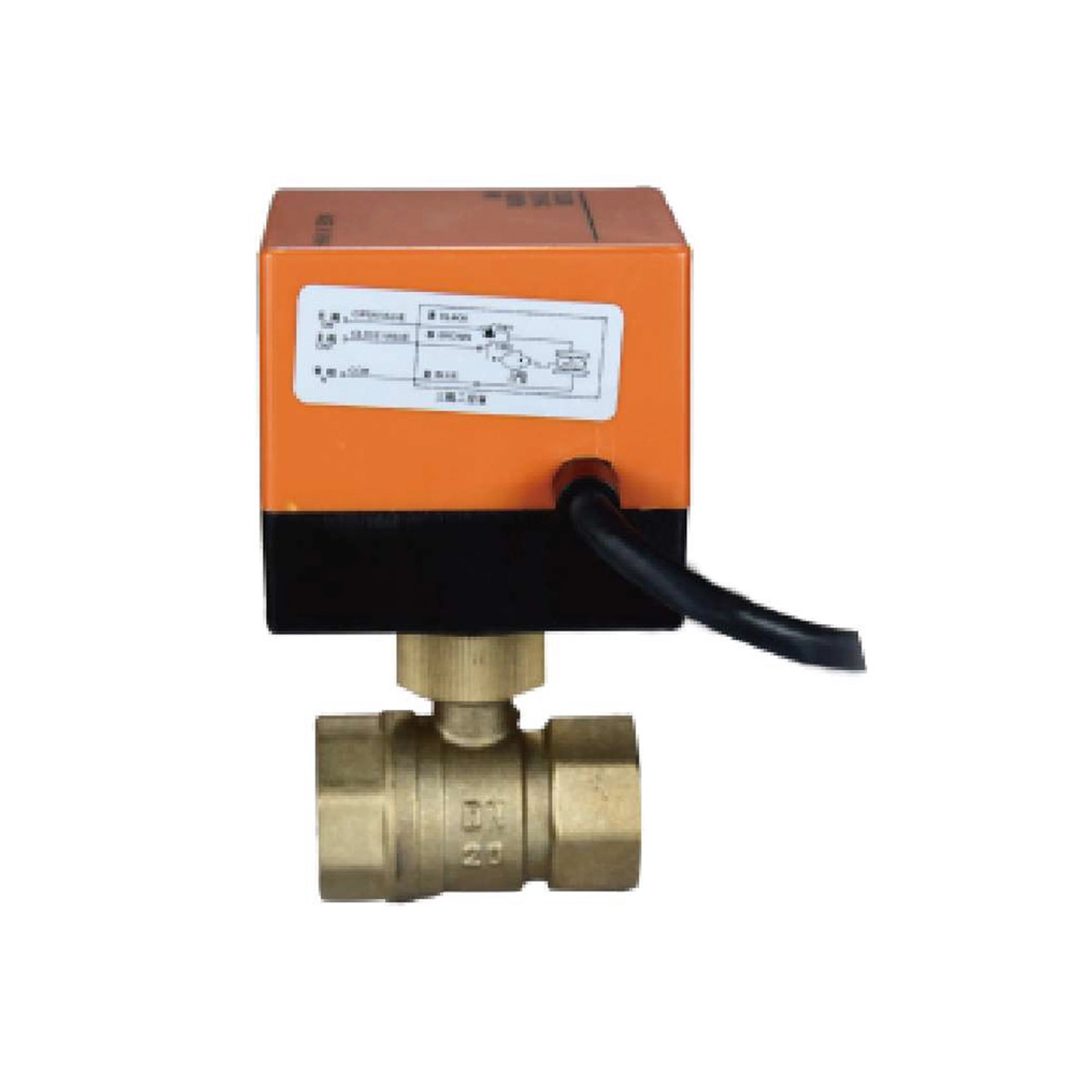

The VB-3200 electric two-way valve is an electrically controlled valve that meets national standards. It features an integrated design combining a brass valve body and an electric actuator, with a female threaded connection suitable for various piping systems. The ball core structure enables low-resistance opening and closing, while the soft sealing technology ensures Class A leakage. It is compatible with water, ethylene glycol, and other media. It is widely used in HVAC, heating, water supply and drainage, and industrial circulating water systems, providing efficient and reliable on/off solutions for fluid automation control.
VB-3200 normally closed electric two-way valve

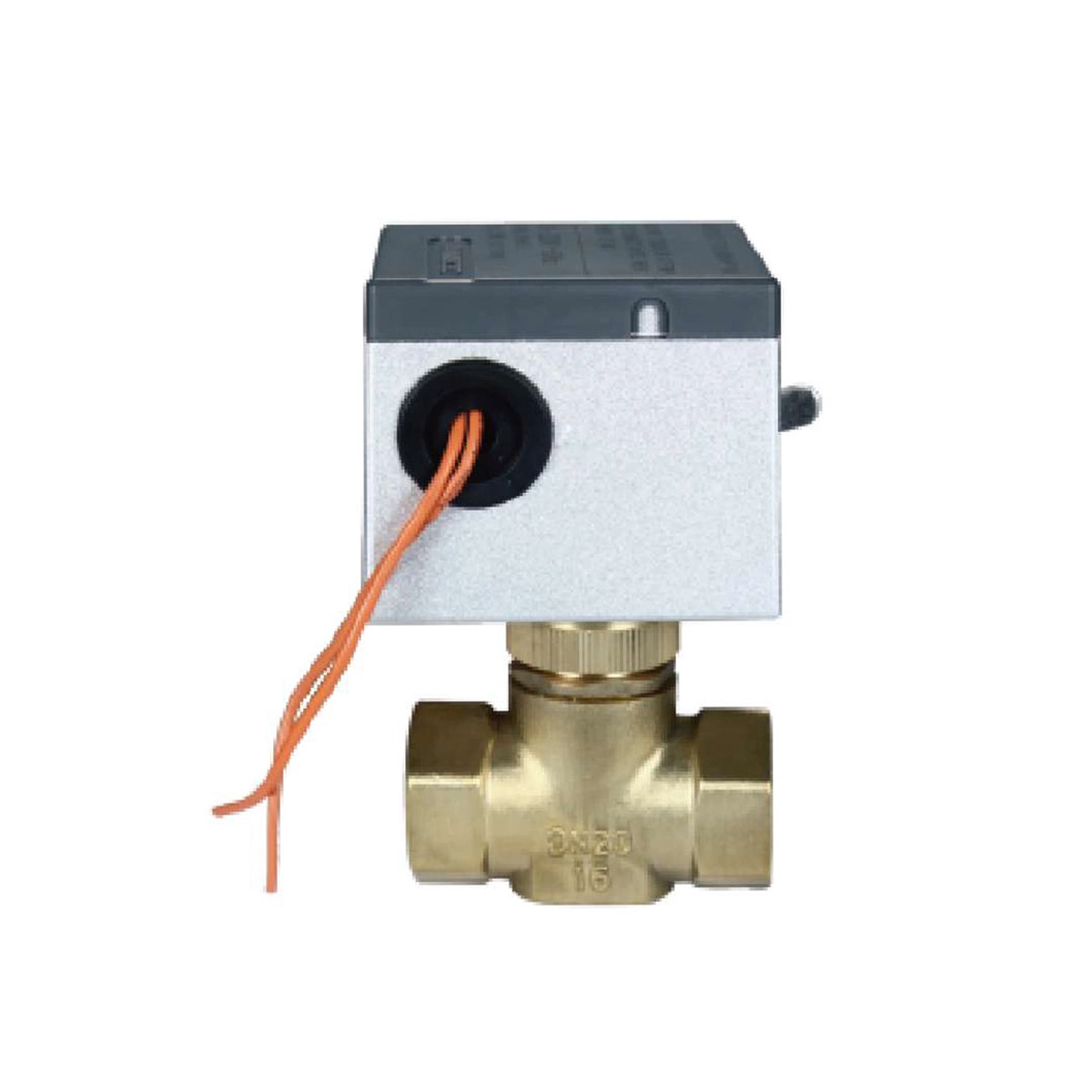

The VB-3200 normally closed electric two-way valve features an integrated design with a brass valve body and electric actuator, and a male threaded connection suitable for various piping systems. The shut-off sealing structure ensures Class A leakage, and the electric actuator supports precise control via electrical signals, suitable for cold/hot water and steam media. It is widely used in HVAC, heating, and industrial fluid systems, providing efficient and reliable on/off and regulation solutions for automated fluid control. It meets national standards and offers stable performance.
VB-3200 ball type electric two-way valve

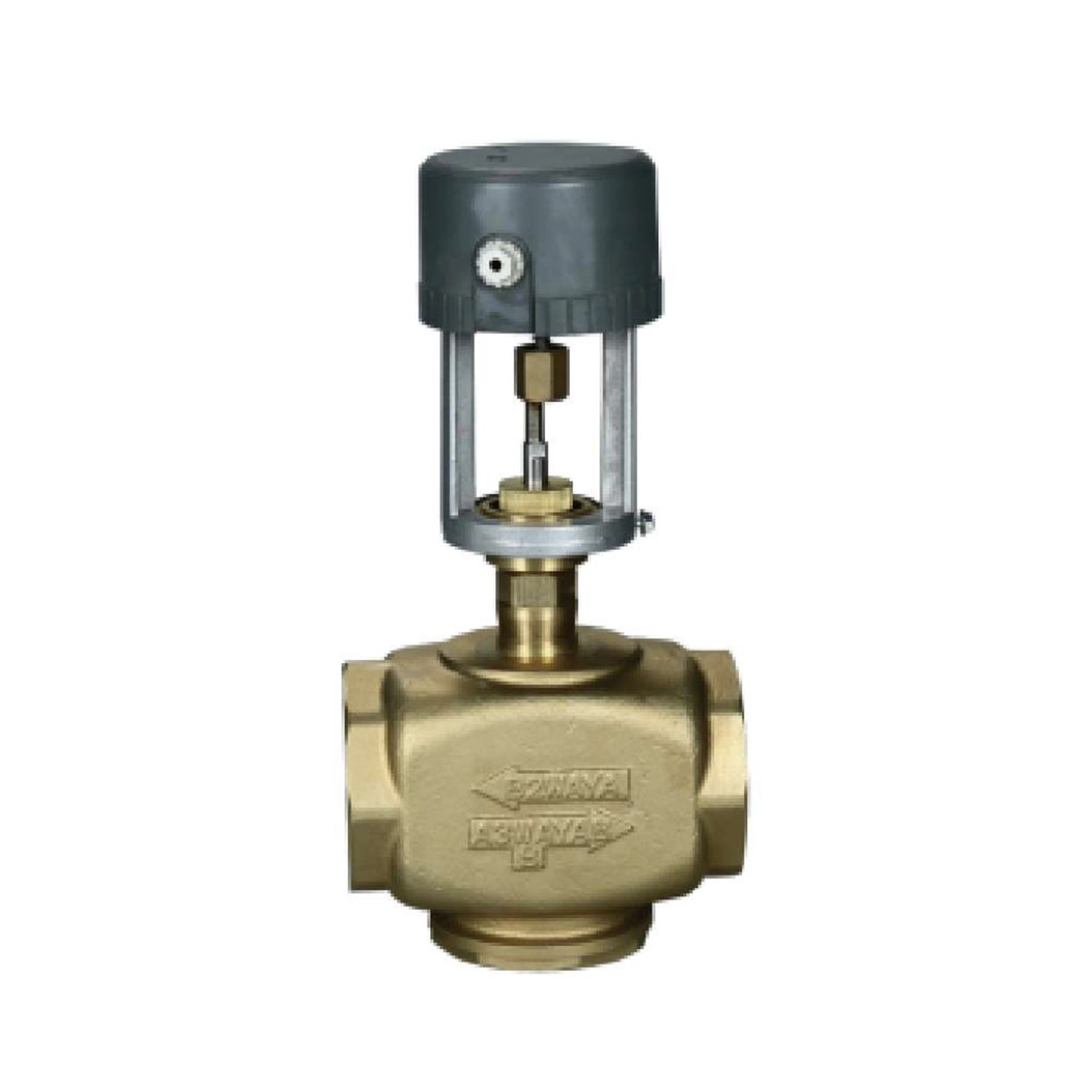

The VB-3200 series threaded bronze valves, when equipped with electronic drive control devices, can regulate the flow of steam or cold/hot water. They are widely used in fluid control systems for central air conditioning, heating, water treatment, and industrial processing.

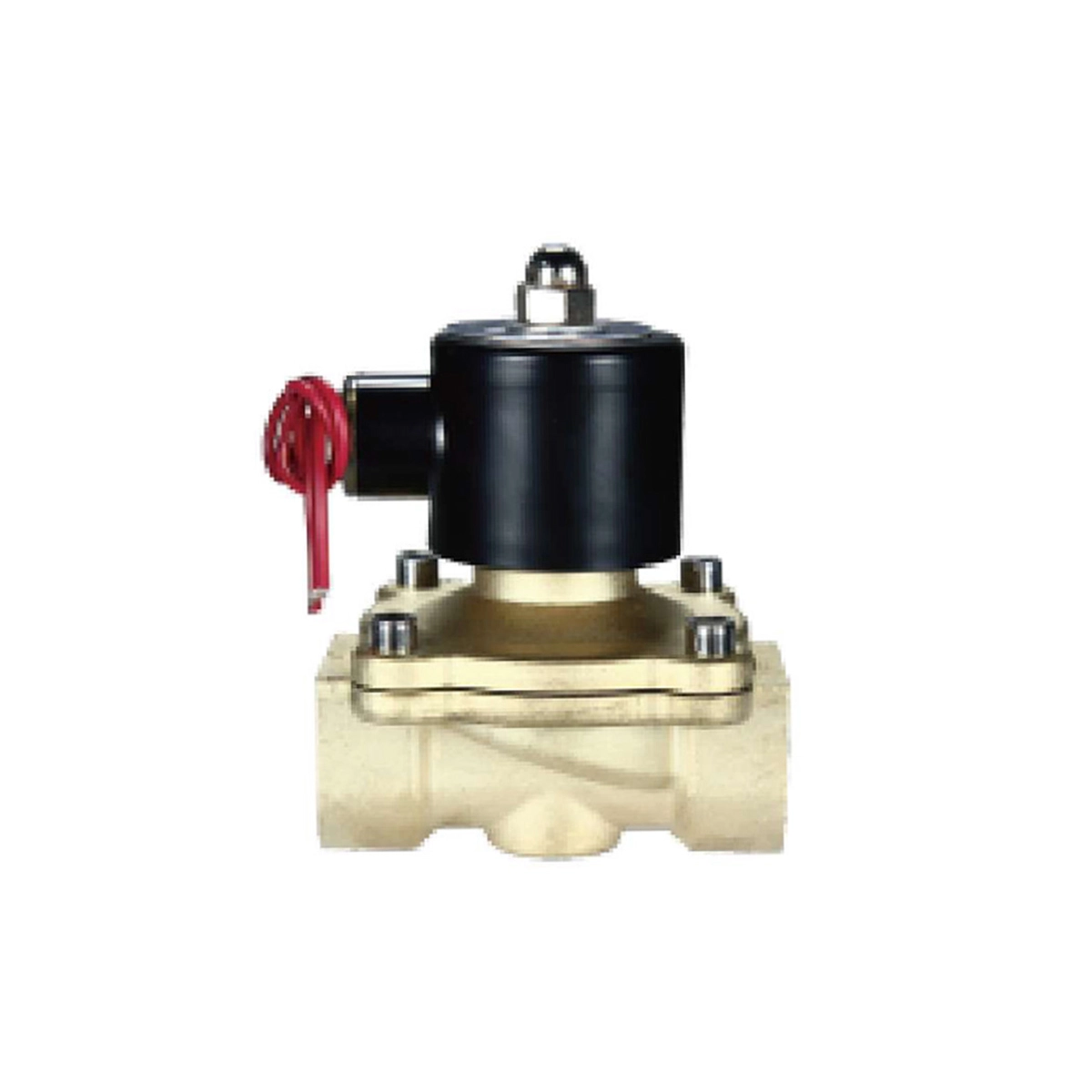

Brass solenoid valve uses high-quality brass valve body, compact structure, durable, suitable for water, air, oil, steam and weakly corrosive liquid fluid control. Widely used in industrial automation, water supply systems, HVAC, agricultural irrigation and food processing, etc.
